Kukko Separating Device

Description

Overview

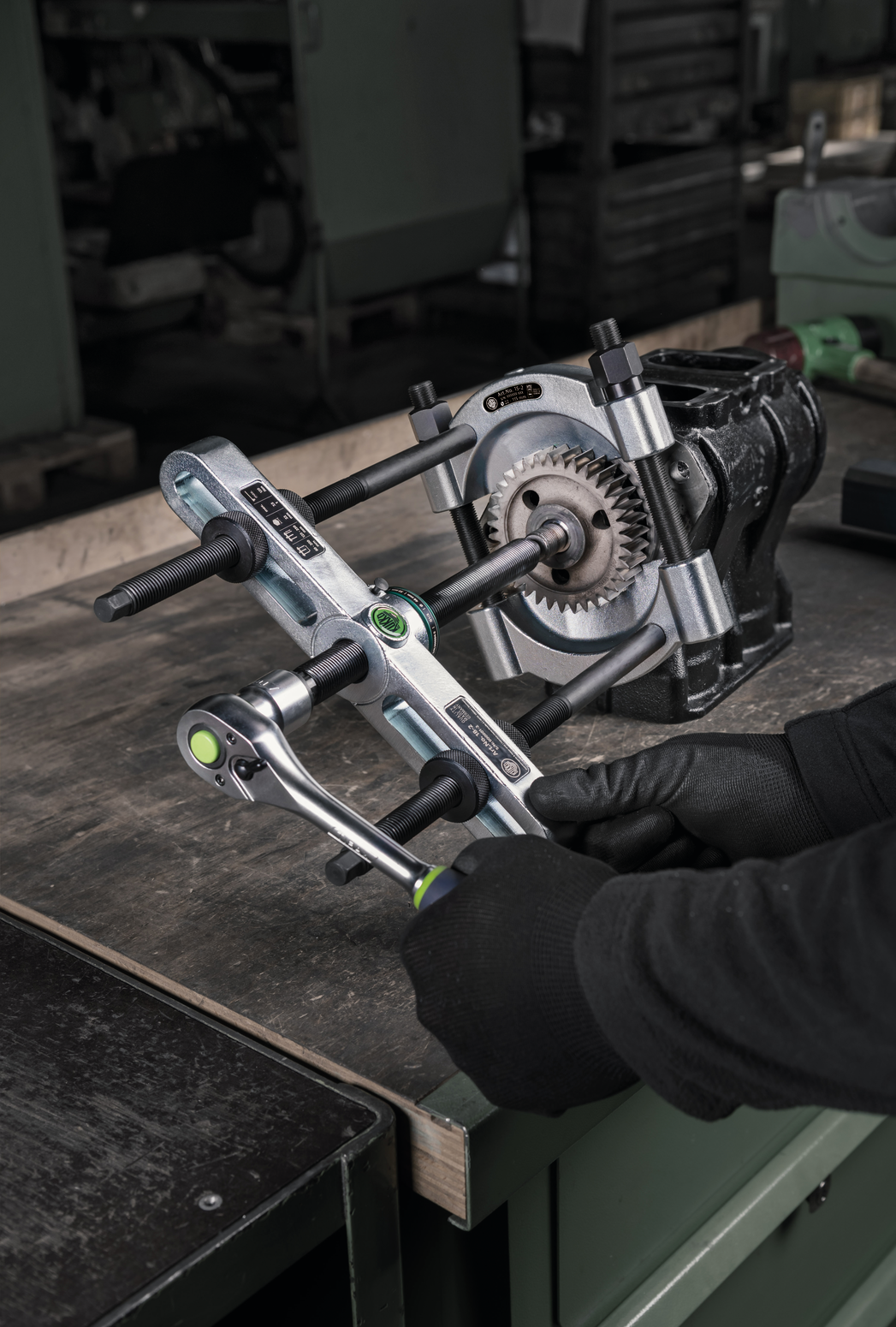

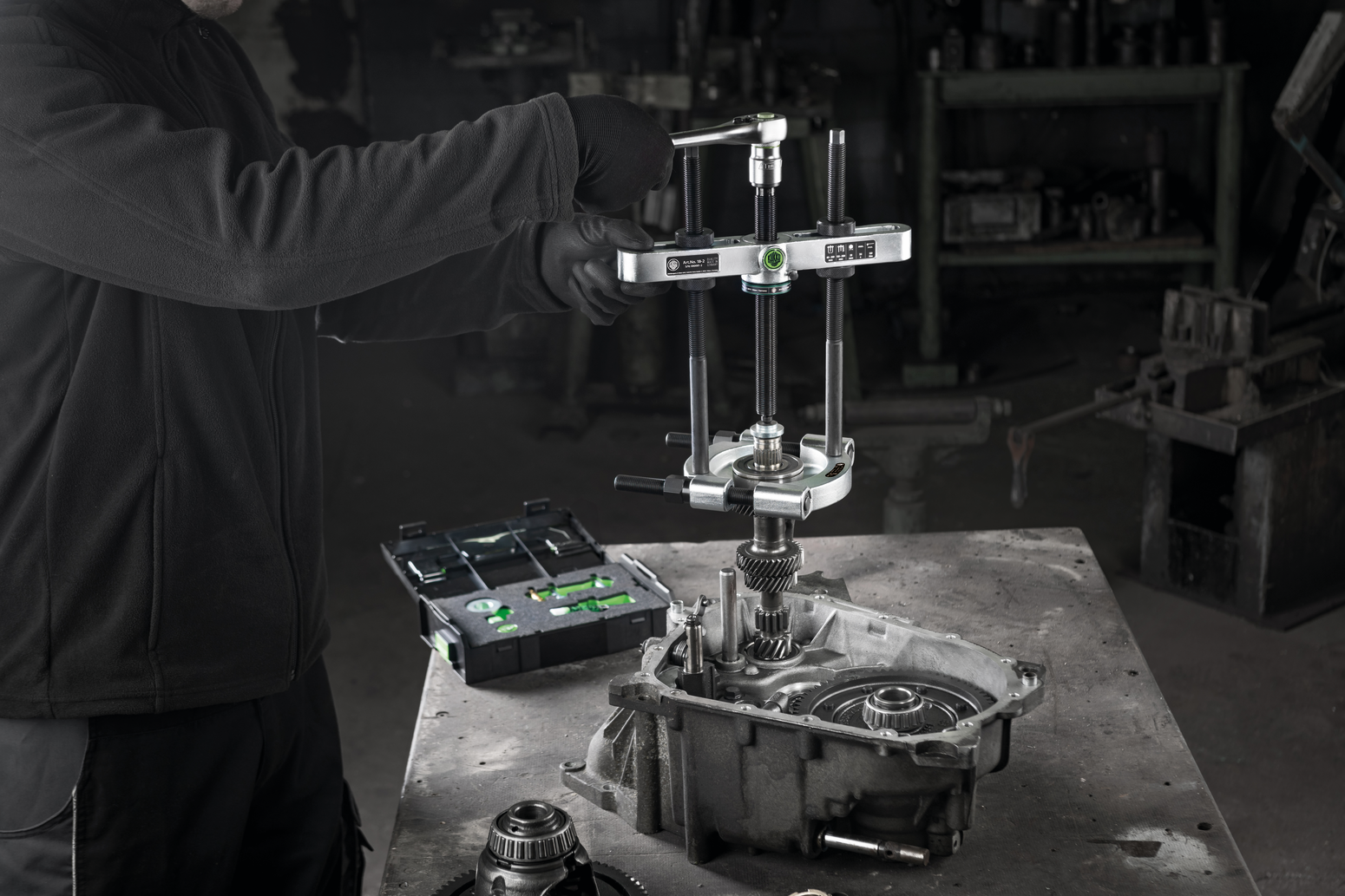

The OzSwiss Kukko Separating Device is a versatile tool used in trade, industry, and workshops for removing ball bearings, roller bearings, inner rings, and other flat parts. This device is designed to work in conjunction with pullers, providing a gentle and efficient way to separate and extract various parts even in tight spaces. Ideal for professionals and DIY enthusiasts seeking a reliable and convenient solution for part removal tasks.

Application

Together with the extractors of series 18 for extracting ball bearings, roller bearings, inner rings and other parts lying flat

Benefits

The sharp cutting edges enable stripping where other stripping methods cannot be used
The screw connection between the separating and extracting device ensures maximum stability during extraction
If the separating jaws are screwed into the extractor the other way round, the contact surface is enlarged and extracted more gently

Specifications

Total width: 167mm
Total depth: 29.5mm
Total height: 210mm
Net weight: 2.9kg
Width across flats: 24mm
Material: Tool steel
Cut-off diameter (min): 22mm
Separating diameter (max): 115mm
Cutting edge thickness at the tip: 0.5mm
Rear cutting edge thickness: 9.1mm
Total cutting edge height: 67mm
Usable snow depth: 41mm
Mounting thread for tension bolt (nominal dimension): M14x1.5
Separation diameter (min-max): 22-115mm
