Kukko Internal Segment Extractor

Description

Overview

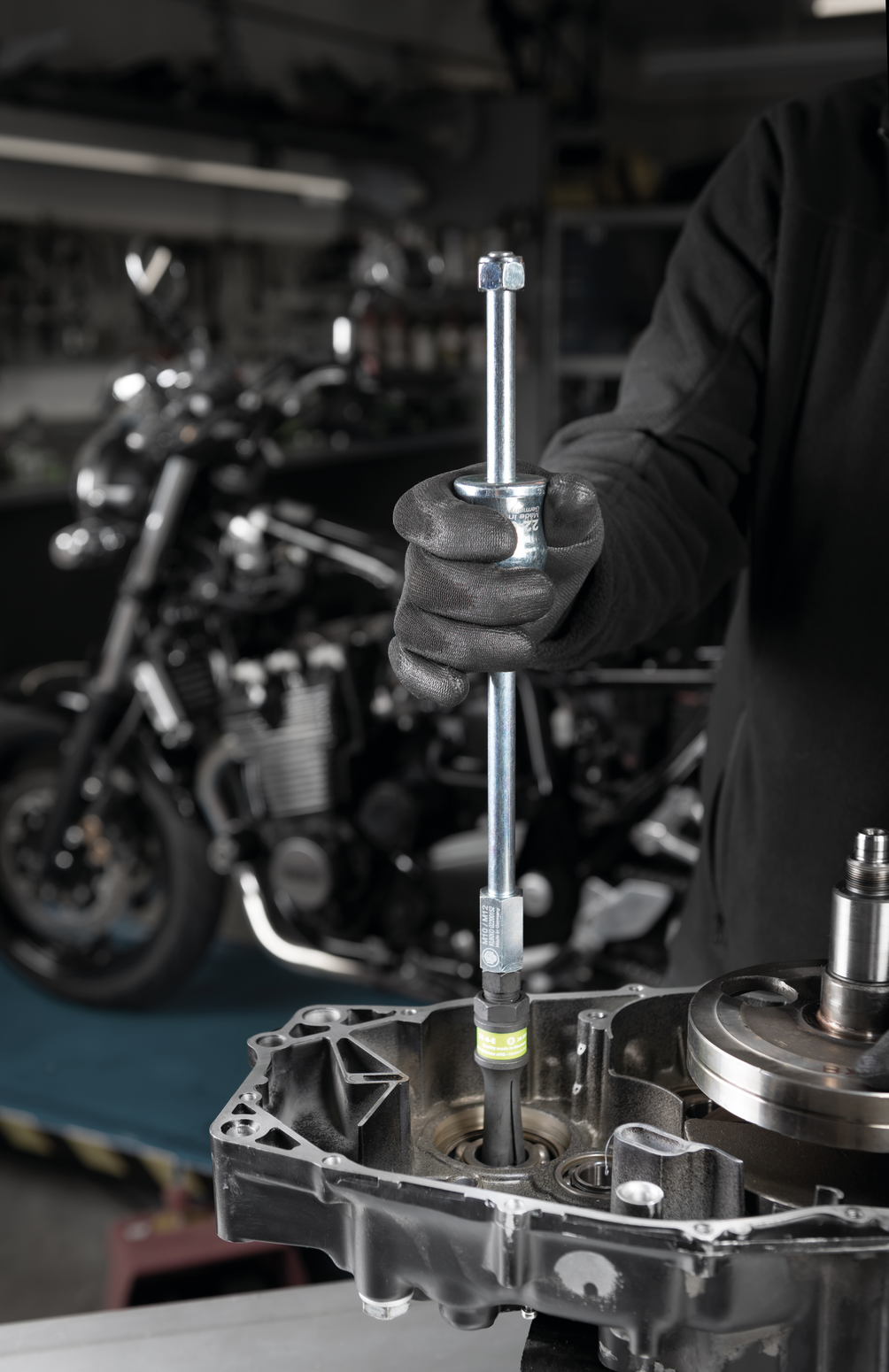

This Internal Segment Extractor in the 21-E series from OzSwiss is designed for extracting flat bearings, bearing outer rings, bushes, and seals in various settings such as trade, workshops, and industry. Featuring a segmented design with fine gripping edges, this extractor ensures safe and efficient extraction of flat parts. With its compatibility and versatility, the 21 series offers a range of applications to suit different needs. Choose from various variants of segmented internal extractors that can be used with counter stays or slide hammers for optimal performance.

Application

Benefits

• Thanks to its segmentation and fine spindle, the segment extractor is ideal for precise and gentle work

• Thanks to the mechanical spindle, even bearings that are tightly seated on the rear wall are pulled out safely and quickly

• Shaping ensures a secure grip when mounting and swivelling out bearings or inner rings that form a blind hole

• The thread adapters for internal extractors that may be required are included in the scope of delivery of the counter stays and slide hammers

Specifications

• Total height: 125mm

• Net weight: 0.2kg

• Width across flats: 14mm

• Width across flats: 22mm

• Span inside pull-out (min): 15mm

• Span inside pull-out (max): 20mm

• Material: Tool steel

• Diameter of the extractor: 25mm

• Mounting thread (nominal dimension): M10

• Insertion depth of internal extractor: 45mm
